Adaptér typu C-mount MAGUS CMT075
Kód: 83214Podrobný popis

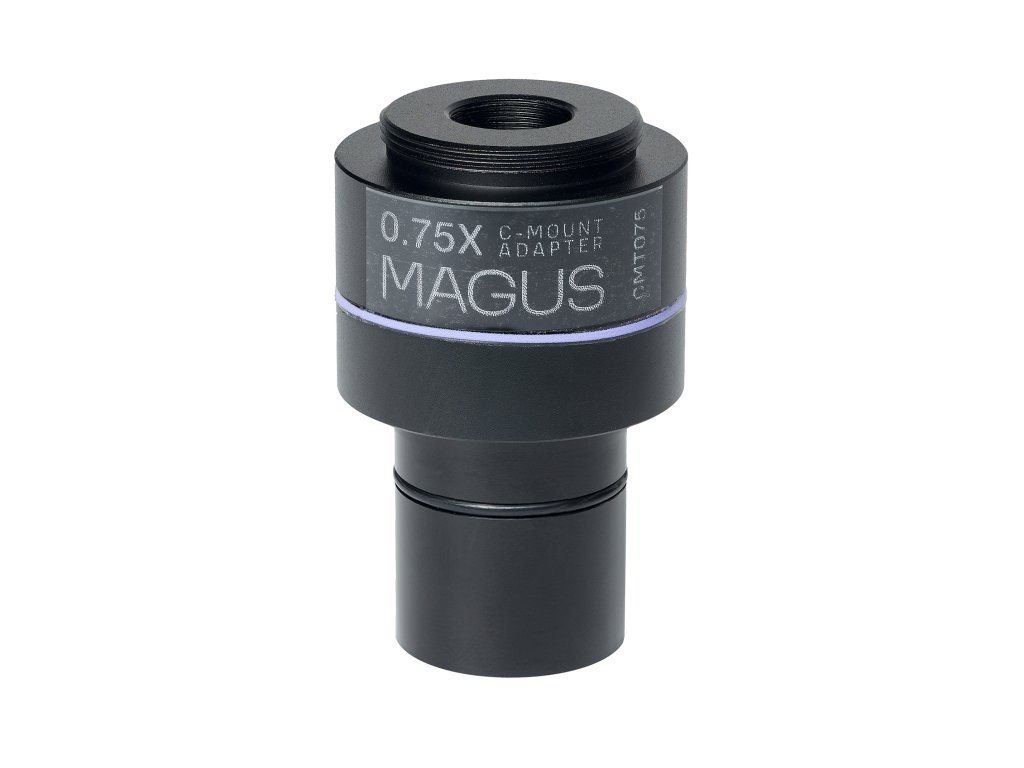

Installing a digital camera on a microscope requires a special device – a C-mount adapter. It has its own magnification, and so the choice of the model will depend on the parameters of your camera’s sensor. The CMT075 adapter with a magnification of 0.75x is recommended for cameras with a matrix that is 1/1.8"–1" in diameter, which will give the widest field of view. In the MAGUS collection, these cameras are:
- CLM10
- CBF30
- CDF30
- CLM30
- CHD40
- CBF50
- CDF50
- CHD50
- CBF90
To install the camera in the eyepiece tube, you will need not only an adapter but also an adapter ring to fit the diameter of the tube.
Specifications | |
---|---|
Suitable for | 1/1.8"–1" sensors |
Magnification, x | 0.75 |
Focal length, mm | fixed |
Barrel diameter, mm | 23.2 |
Dodatočné parametre
Kategória: | Adaptéry digitálneho mikroskopu MAGUS |
---|---|
Záruka: | 2 roky |
Hmotnosť: | 0.08 kg |
