Digitálny fotoaparát MAGUS CDF50

Podrobný popis

GPSR: Levenhuk Europe V Chotejně 700/7 102 00 Praha 10 Česká republika 📞 +420 246 019 025 🌐 eu.levenhuk.com Bezpečnostné upozornenia – mikroskopy Mikroskop používajte iba podľa určenia a v súlade s návodom výrobcu. Nevystavujte zariadenie vlhkosti, vode ani extrémnym teplotám – hrozí poškodenie alebo úraz elektrickým prúdom. Pri modeloch s osvetlením (LED/halogén) nepozerajte priamo do zdroja svetla – môže dôjsť k poškodeniu zraku. Nikdy nesmerujte mikroskop (najmä so zrkadlom alebo silným svetlom) na Slnko – riziko trvalého poškodenia zraku. Používajte iba originálne napájacie adaptéry a príslušenstvo odporúčané výrobcom. Pred čistením alebo údržbou odpojte zariadenie od elektrickej siete. Manipulujte opatrne so sklenenými časťami (šošovky, preparáty) – riziko poranenia. Uchovávajte mimo dosahu malých detí bez dozoru – niektoré časti môžu byť malé alebo ostré. Pri práci s chemickými preparátmi dodržiavajte zásady bezpečnosti (rukavice, vetranie). Zariadenie nerozoberajte – opravy prenechajte autorizovanému servisu.

Full color camera with SONY Exmor 2.1MP digital CMOS sensor. The sensor is manufactured using back-illumination technology to reduce light scattering and increase the matrix sensitivity (8935mV at 1/30s). The camera produces bright and clear images even in low light. Designed to work in darkfield and brightfield using objectives with a magnification of 40x, 60x, and 100x.

Digital camera in use »

The camera can be mounted on a microscope in two ways: into the trinocular tube via a C-mount adapter or in place of the eyepiece in the tube using an adapter and adapter rings. Please note that the C‑mount adapter may be already included with your microscope; however, its availability depends on the specific model and configuration. Before buying a camera, we recommend checking your microscope’s package contents and then, if necessary, purchasing the appropriate adapters. It is recommended to use an adapter with a magnification from 0.6x to 0.9x with the camera, which will give the widest possible field of view without distortion. After installation, the camera connects to a computer via a USB3.0 port with a data transfer speed of 5Gbps.

MAGUS View software is used to display images on the monitor, capture photos and videos, and for carrying out other actions. The package includes a disk with software and drivers. Please note: Before starting, the software must be calibrated for each objective you use. For this, you will need a special calibration slide (not included).

The image is displayed on the monitor in Full HD 1920x1080px format with a frame rate of 96fps. The frames transition is smooth, without delays, and so the camera can be used to observe moving objects, including demonstrations during lectures or scientific presentations.

Key features:

• 2.1'' backlit CMOS sensor, high matrix sensitivity
• Suitable for darkfield or brightfield studies with 40x, 60x, and 100x objectives
• Installed into the trinocular tube or in the eyepiece tube of a microscope
• Full HD resolution 1920x1080px with a frame rate of 96fps, perfect for studying moving objects
• Connection to PC via USB3.0 port, data transfer speed 5Gbps
• Software and drivers included

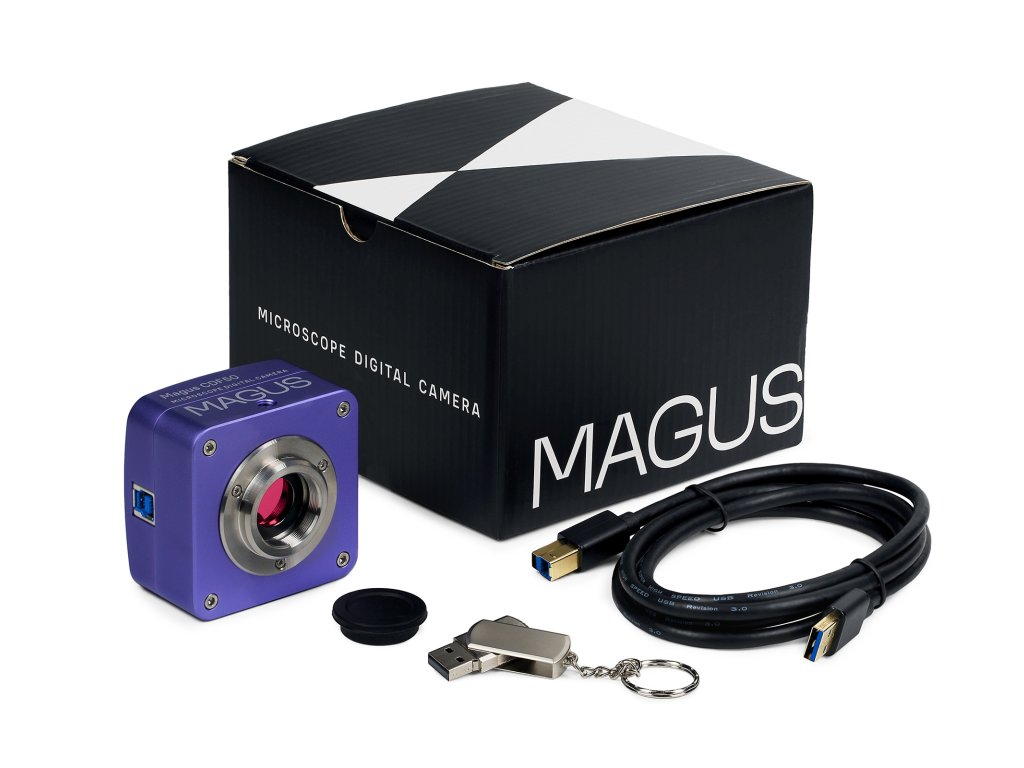

The kit includes:

• Digital camera
• USB cable
• Installation CD with drivers and software
• User manual and warranty card
