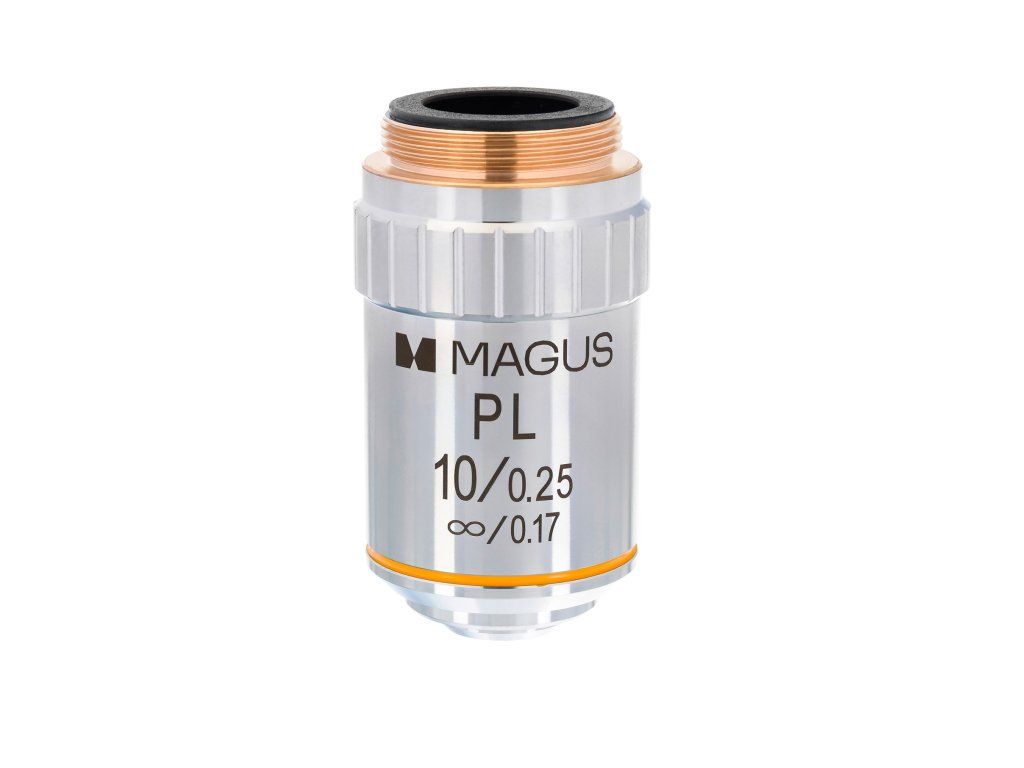

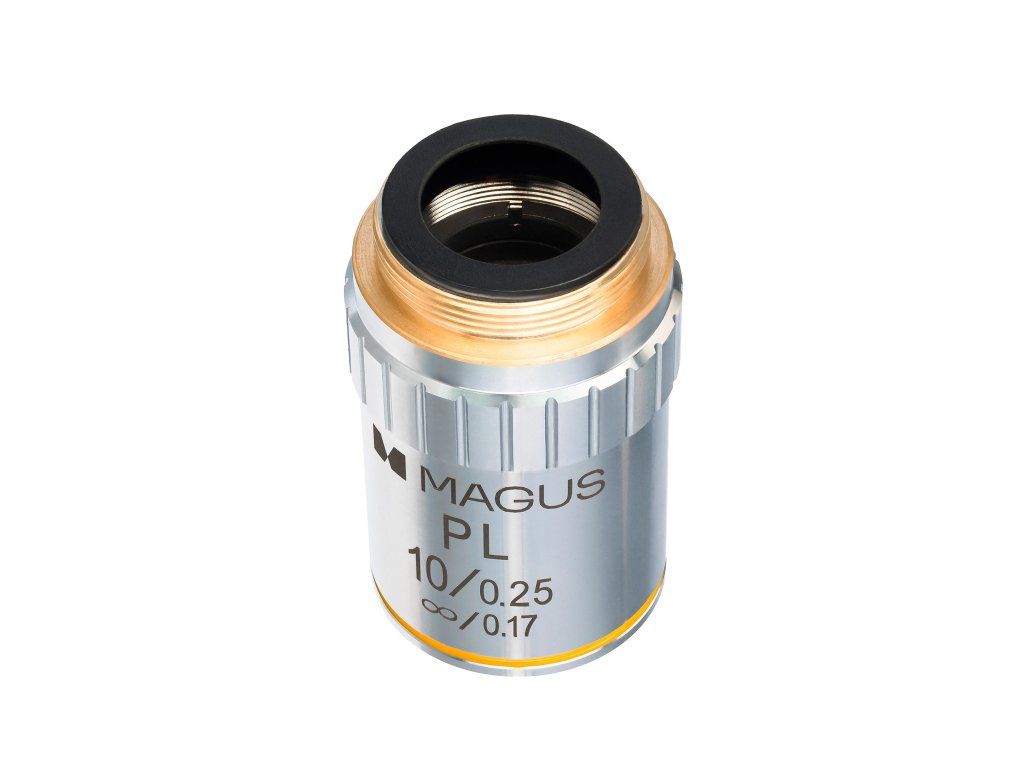

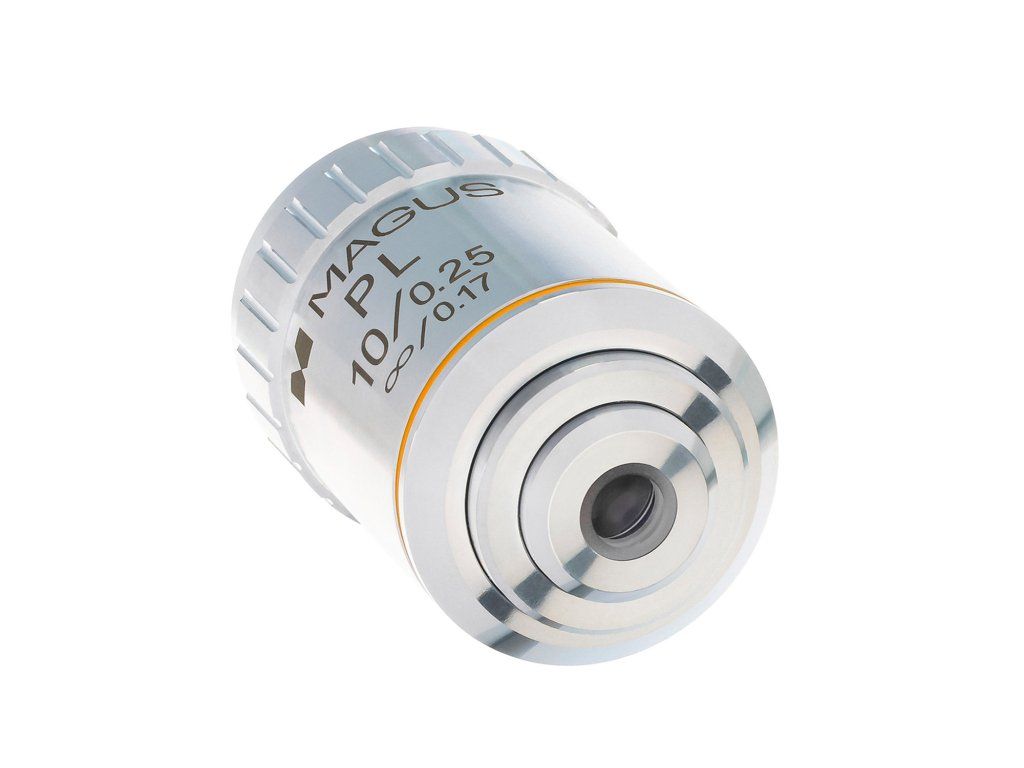

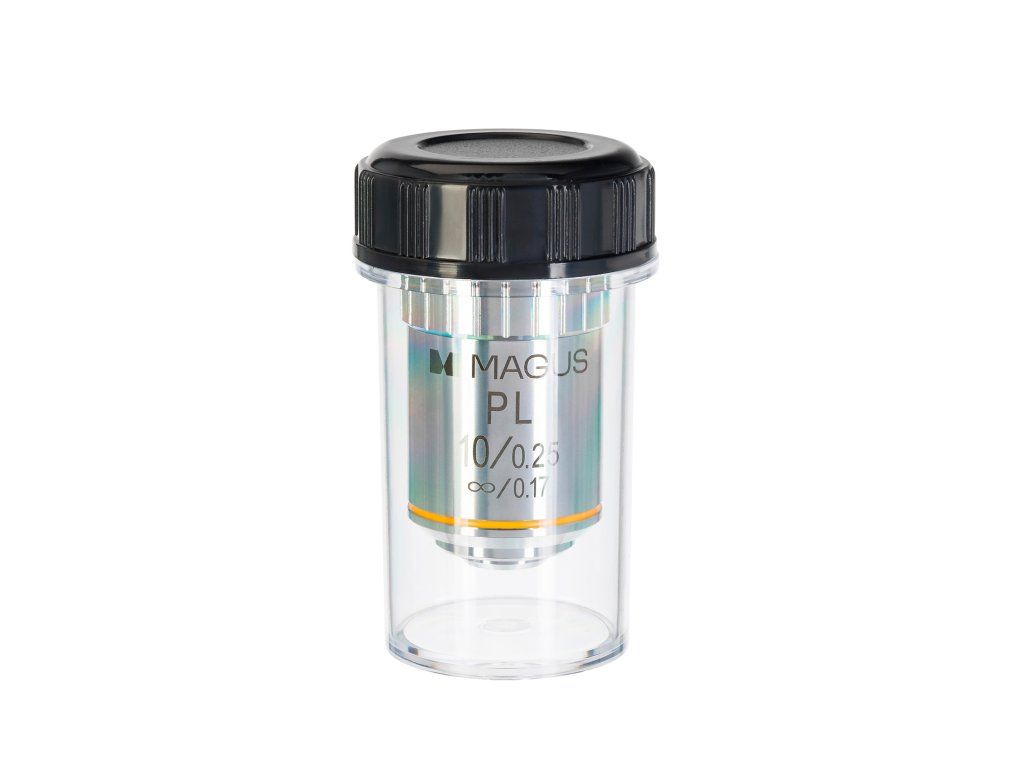

MAGUS MP10 10x/0.25 ∞/0.17 Infinity Plan Objective

Podrobný popis

GPSR: Levenhuk Europe V Chotejně 700/7 102 00 Praha 10 Česká republika 📞 +420 246 019 025 🌐 eu.levenhuk.com Bezpečnostné upozornenia – mikroskopy Mikroskop používajte iba podľa určenia a v súlade s návodom výrobcu. Nevystavujte zariadenie vlhkosti, vode ani extrémnym teplotám – hrozí poškodenie alebo úraz elektrickým prúdom. Pri modeloch s osvetlením (LED/halogén) nepozerajte priamo do zdroja svetla – môže dôjsť k poškodeniu zraku. Nikdy nesmerujte mikroskop (najmä so zrkadlom alebo silným svetlom) na Slnko – riziko trvalého poškodenia zraku. Používajte iba originálne napájacie adaptéry a príslušenstvo odporúčané výrobcom. Pred čistením alebo údržbou odpojte zariadenie od elektrickej siete. Manipulujte opatrne so sklenenými časťami (šošovky, preparáty) – riziko poranenia. Uchovávajte mimo dosahu malých detí bez dozoru – niektoré časti môžu byť malé alebo ostré. Pri práci s chemickými preparátmi dodržiavajte zásady bezpečnosti (rukavice, vetranie). Zariadenie nerozoberajte – opravy prenechajte autorizovanému servisu.

Objective for brightfield observations. The resolution limit of a 10x/0.25 objective is 1.1μm. Chromatic aberrations are corrected for blue and red, spherical aberration for green, and the field curvature is corrected for 90% of the field of view diameter.

The objective is designed for the infinity-corrected tube length. The parfocal distance is 45mm. When a 10/22mm eyepiece is used, the diameter of the field of view is 2.2mm. The objective is designed to be used with specimens with 0.17mm coverslips.

The lower limit of the microscope’s useful magnification, when a 10x objective is used, is 125x. Lower magnification does not allow you to distinguish the details of the specimen whose image is formed by the objective. The upper limit of the useful magnification, when a 10x objective is used, is 250x. Higher magnification is considered “useless” as it provides no new detail in the image of the sample. When a 10x/0.25 objective is used, use 12.5x–25x eyepieces to utilize the useful magnification of the microscope and 10x eyepieces to scan the specimen and search the area of the sample you want to observe.

Plan achromatic objectives form an image that has the same focus in the center and at the edges and, therefore, the distortion is negligible. This strength is used for digital imaging and for combining them with wide-field eyepieces with a 22mm field of view.

Compatibility:

• MAGUS Bio 230B Biological Microscope
• MAGUS Bio 230BL Biological Microscope
• MAGUS Bio 230T Biological Microscope
• MAGUS Bio 230TL Biological Microscope
• MAGUS Bio 250B Biological Microscope
• MAGUS Bio 250BL Biological Microscope
• MAGUS Bio 250T Biological Microscope
• MAGUS Bio 250TL Biological Microscope
• MAGUS Lum 400 Fluorescence Microscope
• MAGUS Lum 400L Fluorescence Microscope
