Posuvník tmavého poľa MAGUS DFS1

Podrobný popis

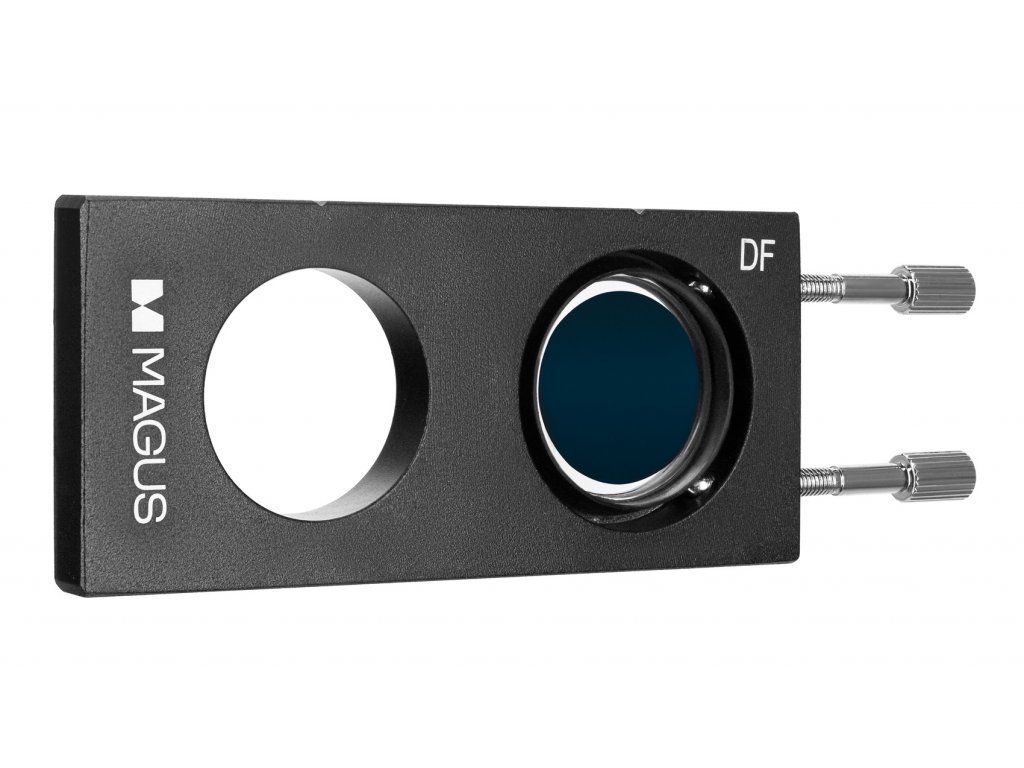

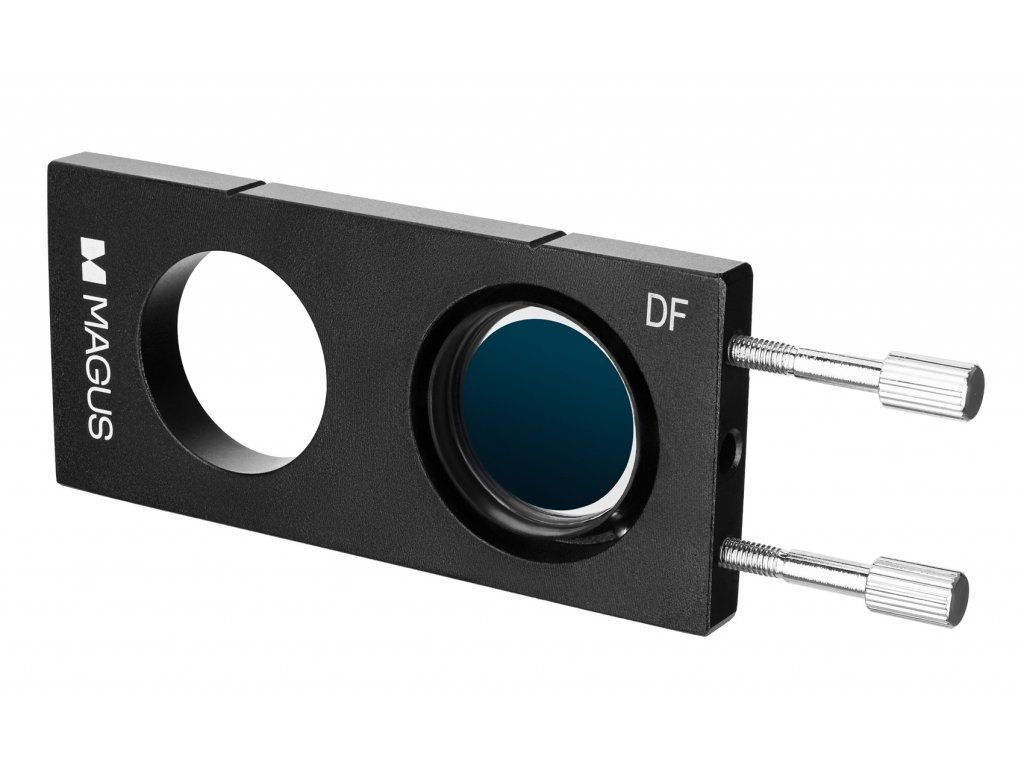

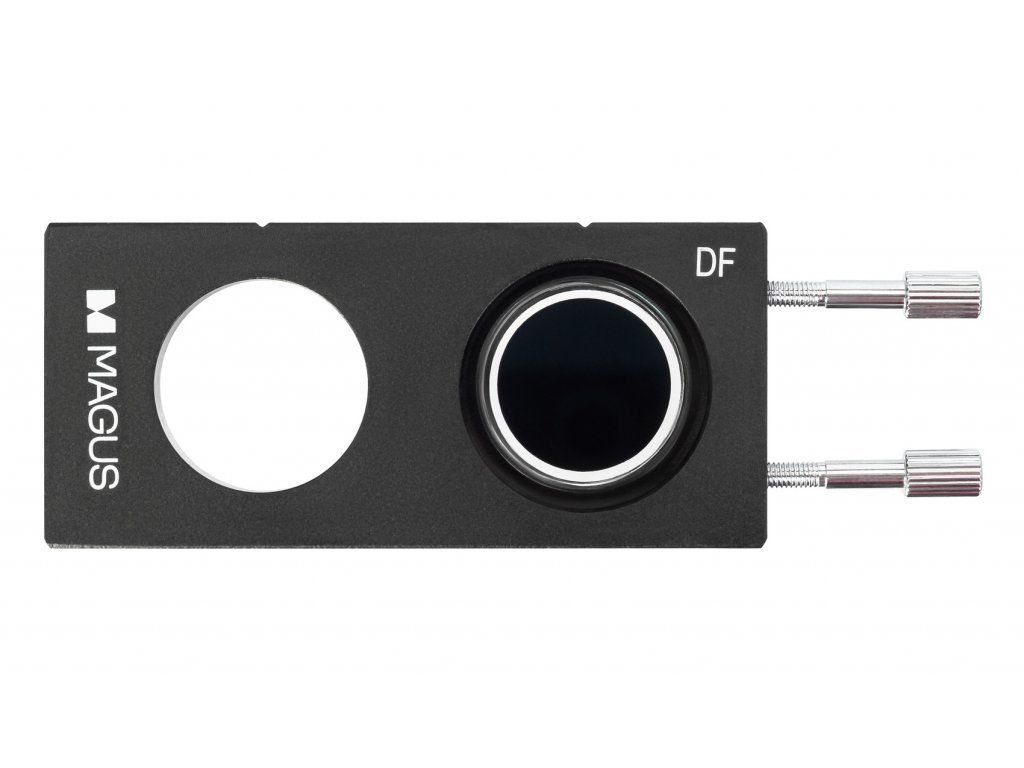

This darkfield slider (plate) is for MAGUS microscopes. It was designed for studying unstained transparent samples that can only be viewed using the darkfield technique. The slider has two holes: one with a built-in darkfield aperture and the other is free for the brightfield technique. Due to this design, you can quickly change the microscopy technique.

The MAGUS DFS1 slider is installed in the slot of the Abbe condenser. The plate is only used when working on non-oil (dry) objective with an aperture less than 0.9. The thickness of the cover glass should ideally be no more than 0.17mm and the glass slide no more than 1.2mm. Under these conditions, the contrast of the image will be maximized.

Compatibility:

• MAGUS Bio 230B Biological Microscope
• MAGUS Bio 230BL Biological Microscope
• MAGUS Bio 230T Biological Microscope
• MAGUS Bio 230TL Biological Microscope
• MAGUS Bio 250B Biological Microscope
• MAGUS Bio 250BL Biological Microscope
• MAGUS Bio 250T Biological Microscope
• MAGUS Bio 250TL Biological Microscope
• MAGUS Lum 400 Fluorescence Microscope
• MAGUS Lum 400L Fluorescence Microscope
