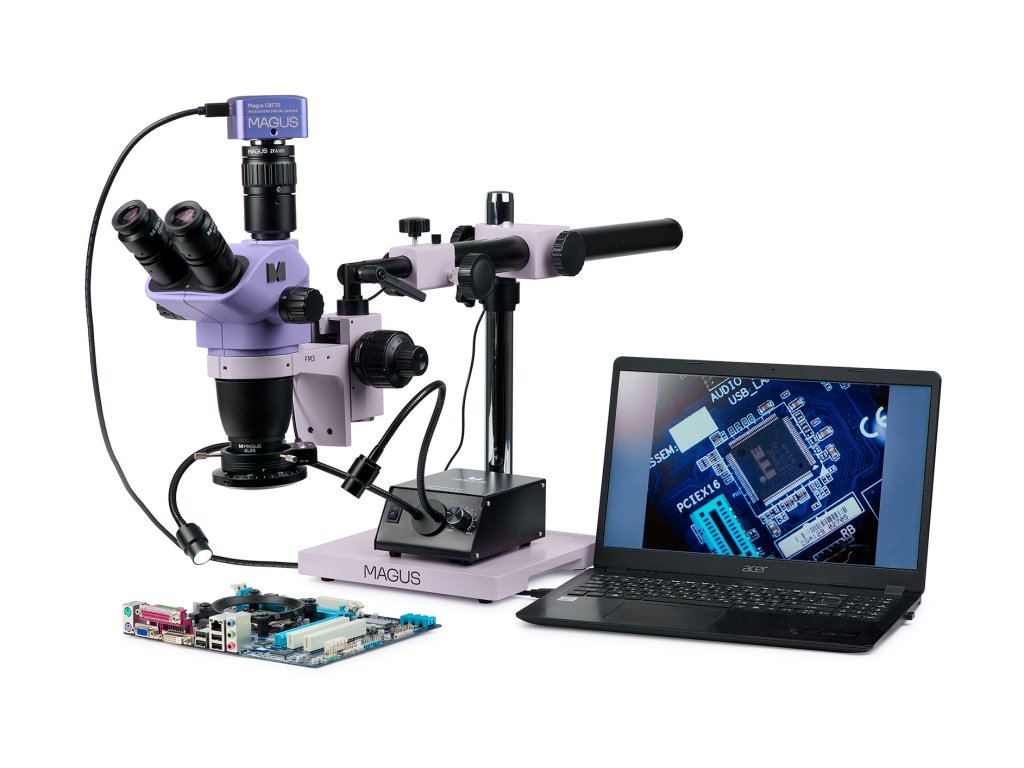

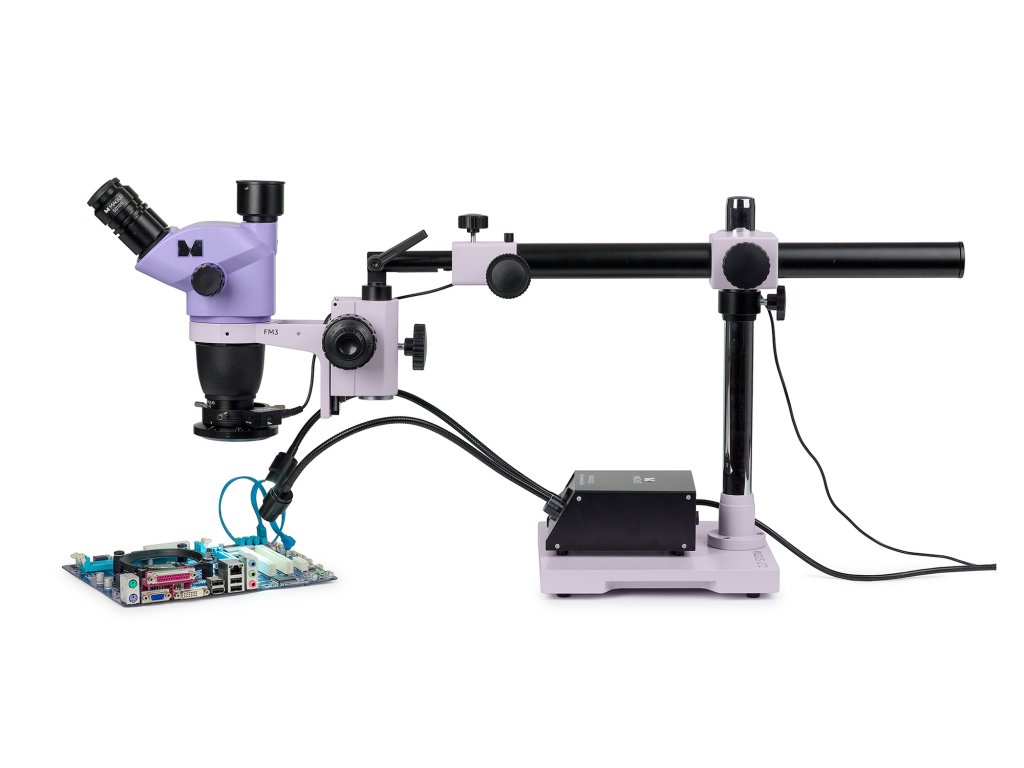

The ready-made solution for soldering, repair, and quality control is based on MAGUS Stereo 8H series microscope head and universal MAGUS UT2 microscope stand.
The stereomicroscope with the Greenough optical design provides accurate details of the surface topography with no loss of spatial orientation, thereby ensuring a large depth of field. The trinocular microscope is suitable for those who prefer to operate the microscope in their normal posture and who view the specimen through the eyepieces.
The camera in the digital microscope allows for the recording of the observation process as well as its intermediate and final outcomes. The camera is equipped with a USB3.0 port and transfers an image to a computer screen. The data transfer speed is 10 times faster than USB2.0 cameras.
The microscope is equipped with two reflected light illuminators: ring light with a polarization filter and a gooseneck light.
The microscope optimizes workplace ergonomics, thus improving operator comfort and productivity.

Detailné informácie

Podrobný popis

The ready-made solution for soldering, repair, and quality control is based on MAGUS Stereo 8H series microscope head and universal MAGUS UT2 microscope stand.
The stereomicroscope with the Greenough optical design provides accurate details of the surface topography with no loss of spatial orientation, thereby ensuring a large depth of field. The trinocular microscope is suitable for those who prefer to operate the microscope in their normal posture and who view the specimen through the eyepieces.
The camera in the digital microscope allows for the recording of the observation process as well as its intermediate and final outcomes. The camera is equipped with a USB3.0 port and transfers an image to a computer screen. The data transfer speed is 10 times faster than USB2.0 cameras.
The microscope is equipped with two reflected light illuminators: ring light with a polarization filter and a gooseneck light.
The microscope optimizes workplace ergonomics, thus improving operator comfort and productivity.

Digital camera

The digital camera mounted in the trinocular tube using a C-mount adapter will record the intermediate and final results of the observation process. This feature is used for quality control and building a database. The 21MP camera on the 1x C-mount adapter will deliver the desired resolution for stereomicroscope observations, and the 4/3" sensor will display the maximum possible field of view. With the minimum magnification of the microscope, the field of view on the computer screen will be 53.5x37mm.

Microscope head

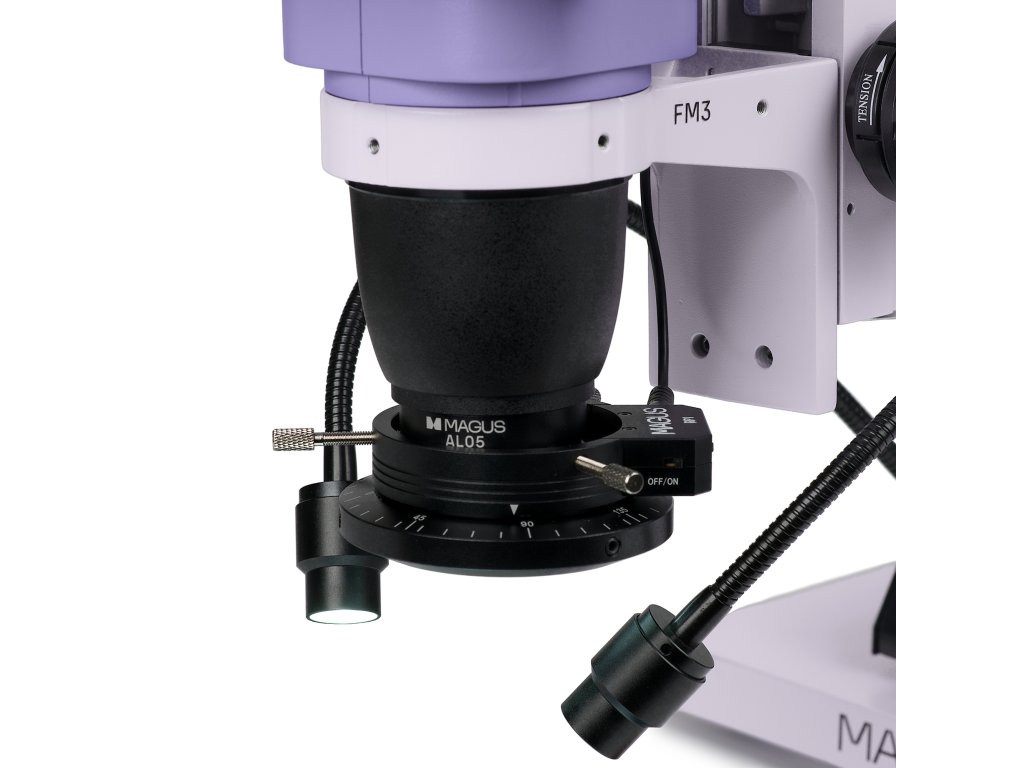

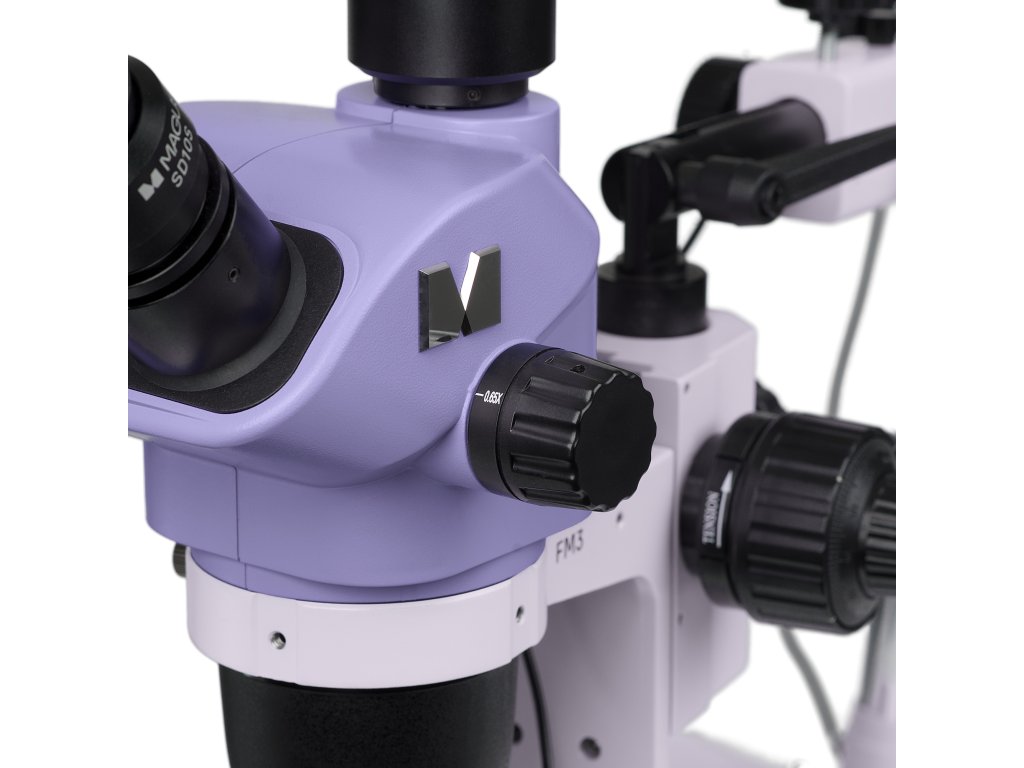

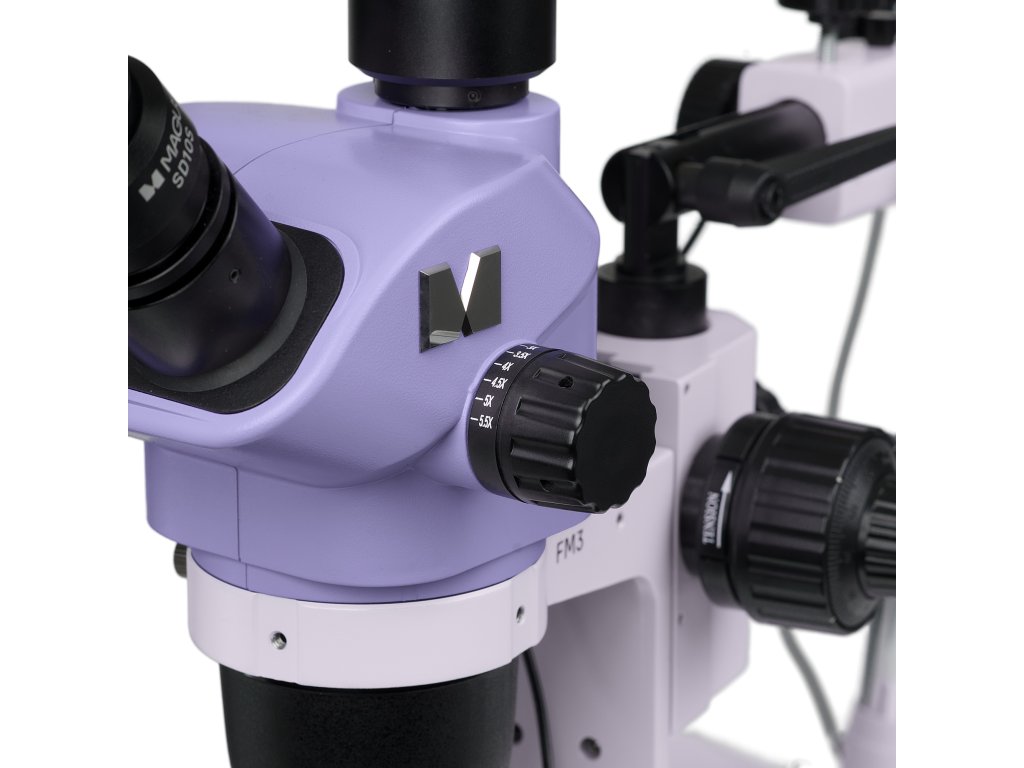

The zoom objective allows for the smooth change of magnification up to 8.4x with no loss of focus. The microscope generates an upright (not inverted) three-dimensional image. The 0.5x auxiliary objective lens changes the magnification range, field of view, and working distance of the microscope.
A magnification of 3.25–27.5x and a working distance of 177mm for soldering are achieved when the 0.5x auxiliary lens is used.
A magnification of 6.5–55x and a working distance of 105mm for quality control are achieved when the 0.5x auxiliary lens is not used.
Instrument manipulations require a larger field of view than visual observation in quality control. When viewed through the eyepieces, the diameter of the field of view with the 0.5x auxiliary lens is 67.7mm using 3.25x microscope magnification, and it is 8mm using 27.5x magnification.
The basic configuration includes 10x/22mm eyepieces with diopter adjustment and eye relief to work with glasses.

Illuminators

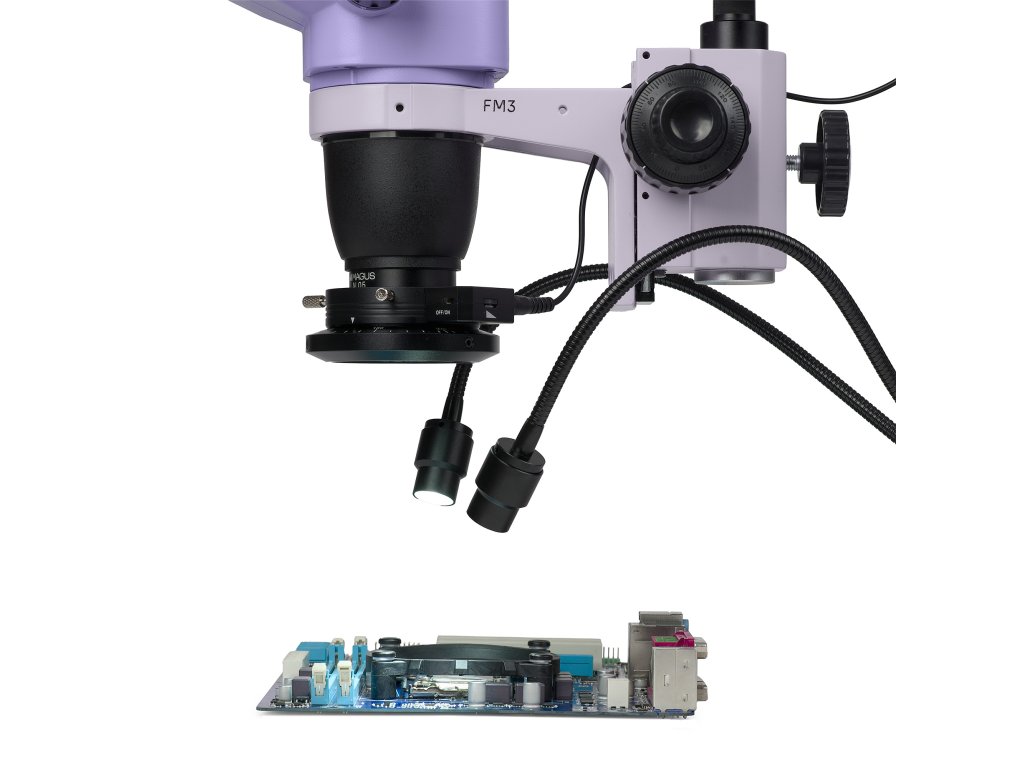

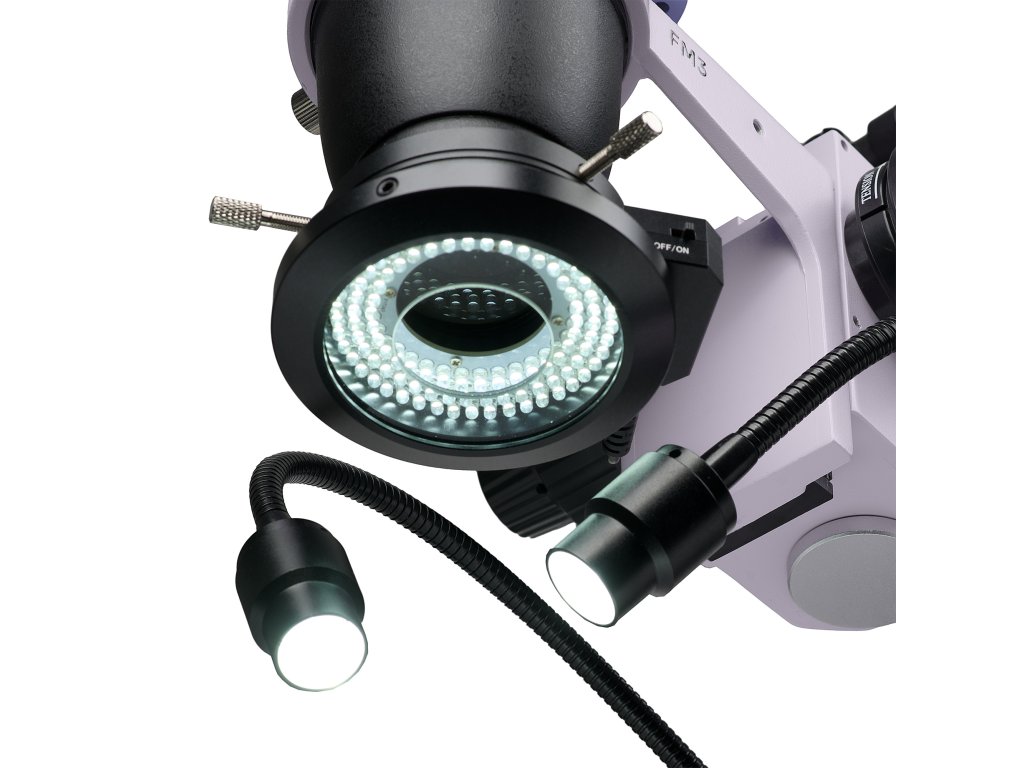

Different tasks require different types of illumination. The kit includes two illuminators. The ring light with a polarizer removes glare from metal. The gooseneck light creates shadows that enable our vision to detect surface topography.

Stand

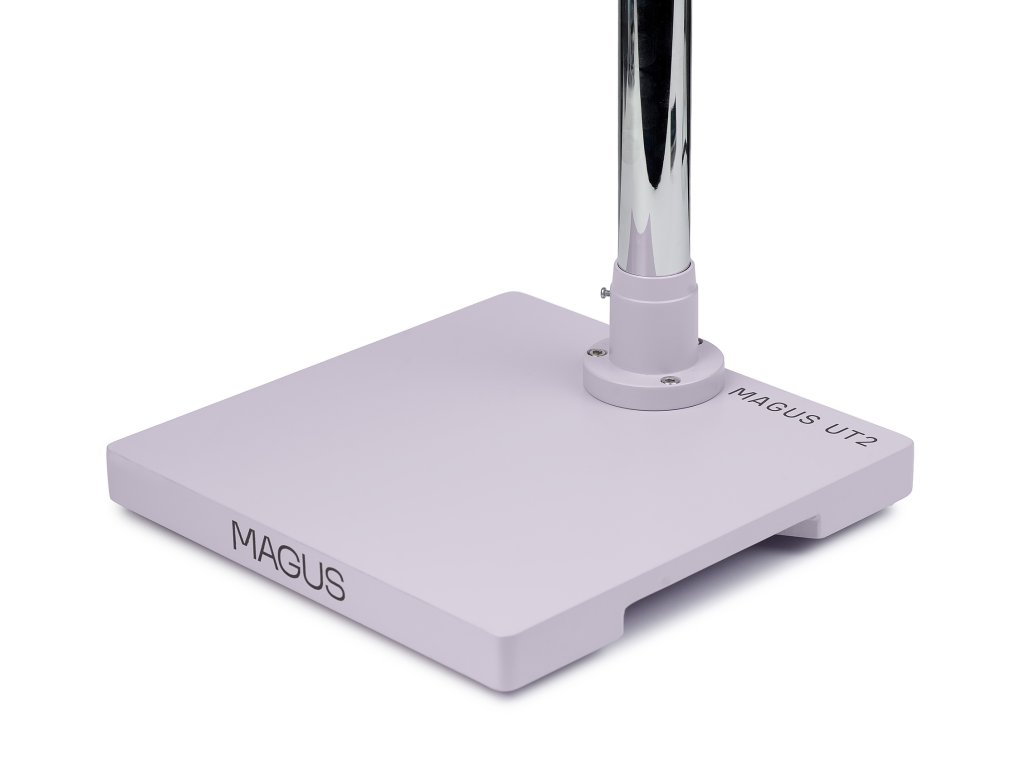

The universal stand with a solid base minimizes the vibrations that are caused by movement, while the long horizontal arm expands the working area.
It is not always convenient to move the object in the optical path during work. Sometimes moving the microscope head is preferable. The micro adjustment knob allows for the smooth horizontal movement of the microscope head back and forth.

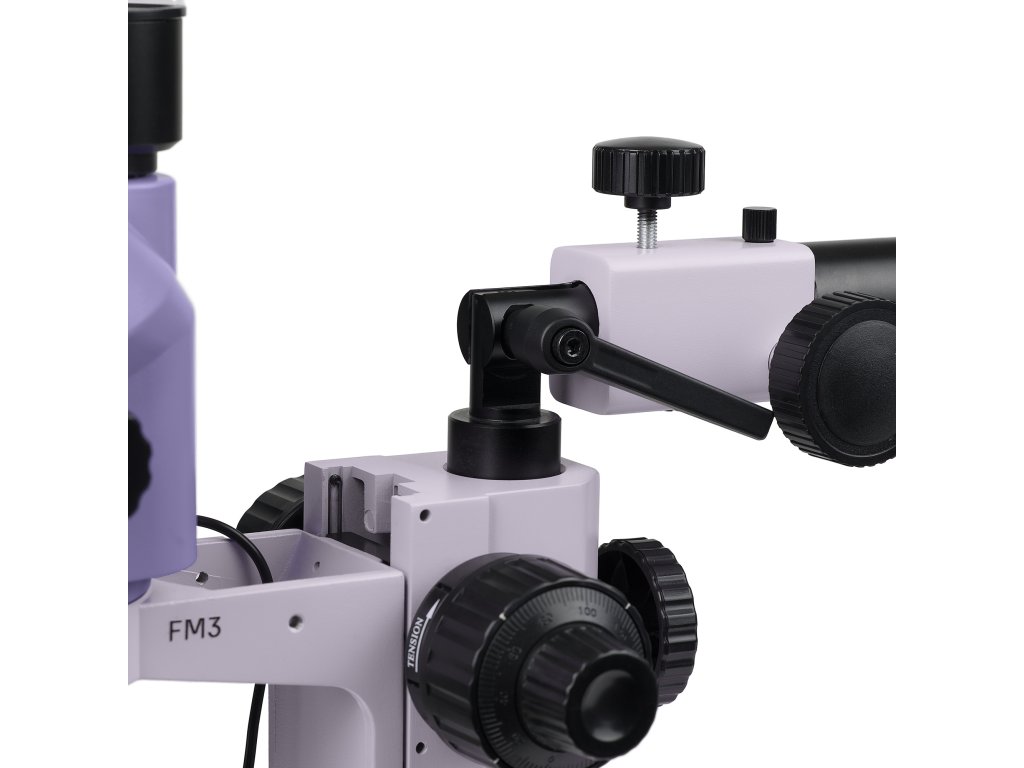

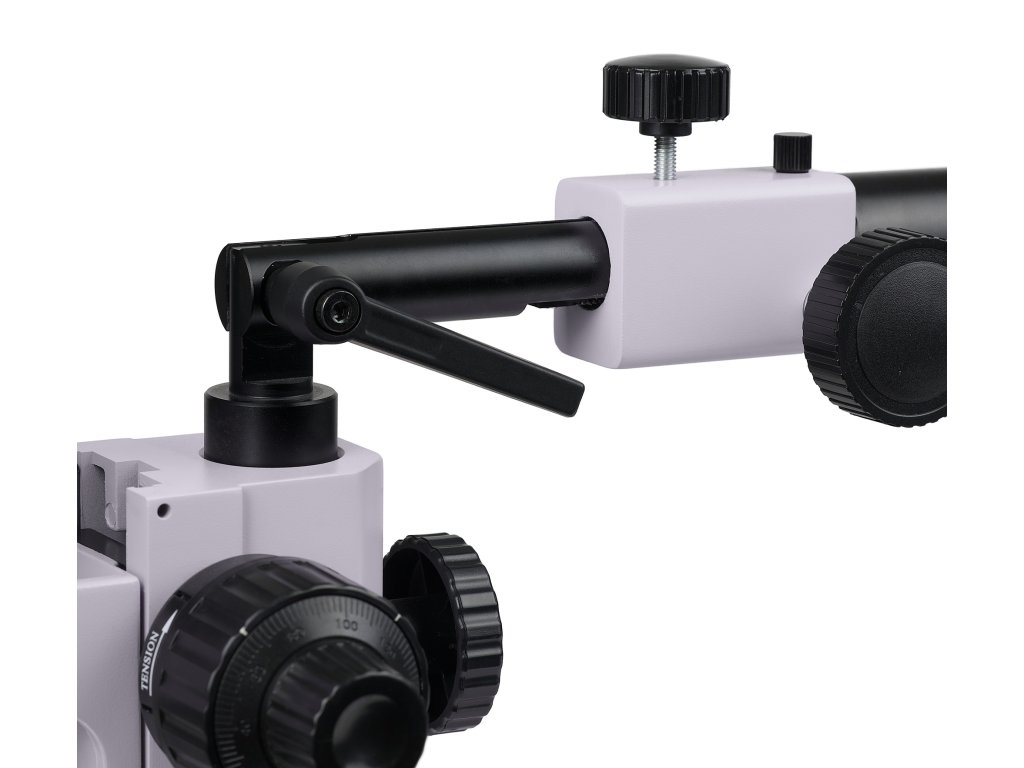

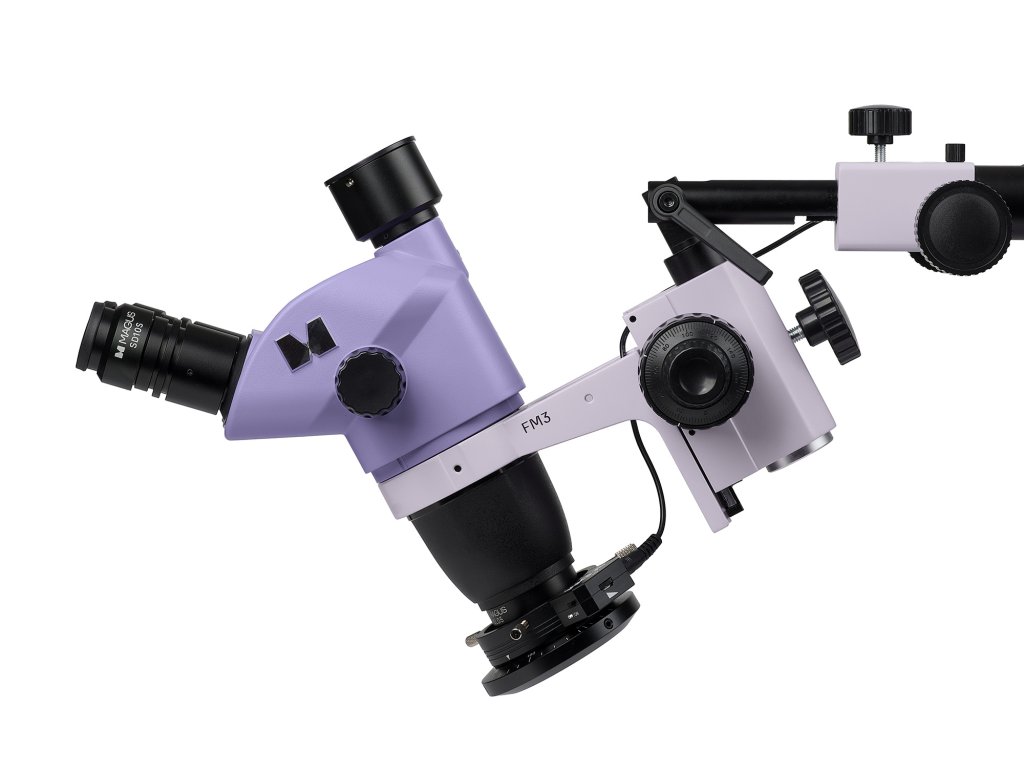

At the end of the stand, there is a mechanism to change the angle of the optical axis. The operator can observe the specimen that is on the table, looking at it from an angle. This feature makes it more convenient to perform manipulations, check the soldering quality, and observe curved objects.

Focusing mechanism

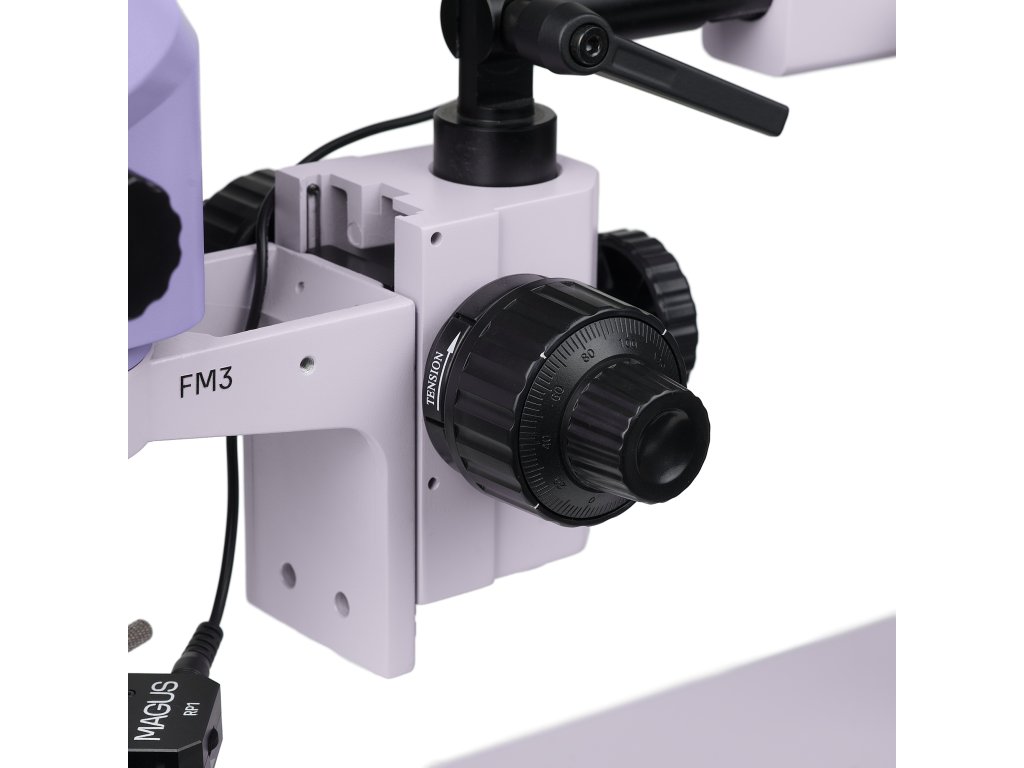

The focusing mechanism has coarse and fine focusing features. The fine focusing will make it easy to adjust the microscope when using magnifications above 40x. The focusing knobs are coaxial, i.e., located on both sides. The coarse focusing tension is adjustable.

Accessories and other off-the-shelf solutions

Comfortable work conditions improve operator productivity. Our off-the-shelf solutions are based on the experience of electronic engineers. At the same time, MAGUS offers other components that you can use to assemble the microscope kit based on your budget and preferences as well as tasks the to be solved. Moreover, in the future, you can supplement the kit with the required accessories.

Microscope features:

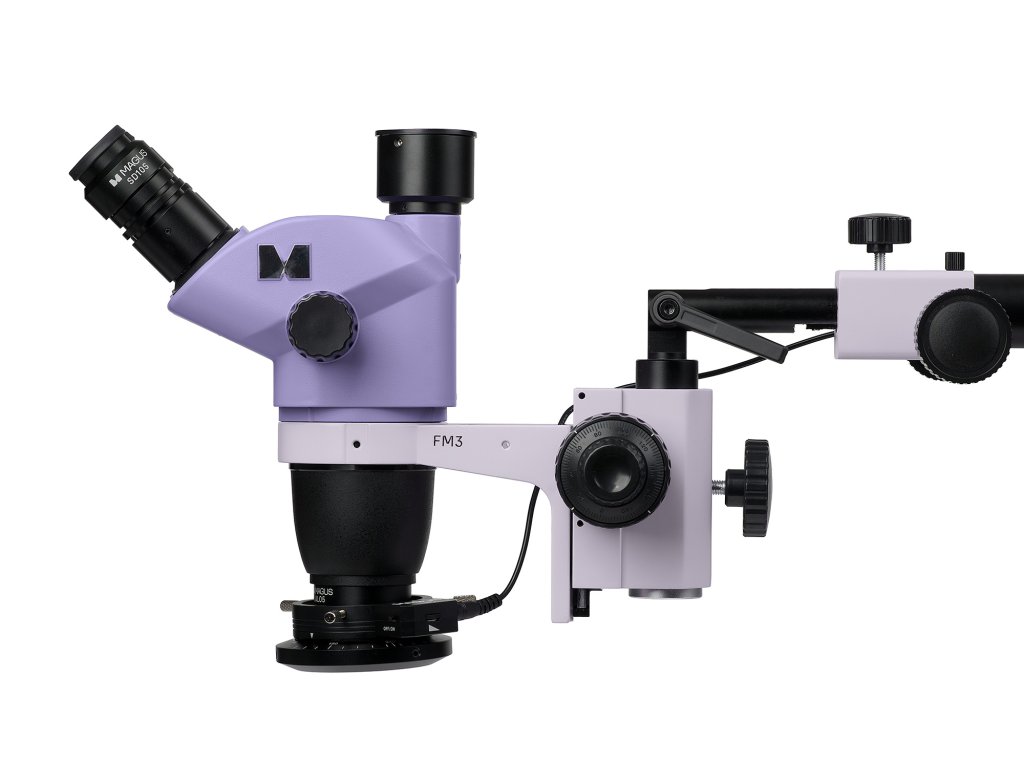

  • Trinocular microscope head with a vertical tube for mounting a camera
  • The zoom lens allows for a smooth magnification change with no loss of focus; 8.4:1 zoom ratio.
  • The advantages of the Greenough optical design: large depth of field, high-resolution 3D visualization, compact design, and reasonable price.
  • The 0.5x auxiliary objective lens enables additional options of magnification, field of view, and working distance.
  • The universal stand expands the working area, allowing for the precise positioning of the microscope head above the specimen and the fine micro adjustment of the head position.
  • The focusing mechanism has coarse and fine focusing features: Operation is comfortable over the entire magnification range of the microscope.
  • Two reflected light illuminators: ring light with a polarization filter and a gooseneck light.
  • Components may be replaced and additional accessories may be installed upon your request.

Camera features:

  • The 21MP sensor provides the best resolution for stereomicroscopic observation
  • The 4/3" sensor will display the largest possible field of view on the screen
  • 17fps at maximum resolution is enough for focus adjustment
  • Up to 192fps at reduced resolution is for classroom presentations and video recording; smooth movement of specimens with no jerking or lagging
  • SONY Exmor backlit color CMOS sensor delivers low noise performance and high light sensitivity even in low light conditions: clearer, brighter, and more color-saturated images
  • USB3.0 interface for fast data transfer with no jerking or lagging
  • The software features functions for photography, video recording, editing, external monitor display, and linear and angular measurement
  • The included 1x C-mount adapter with adjustable focus distance is used to mount a camera on the microscope

The kit includes:

  • MAGUS CBF70 digital camera (digital camera, USB cable, storage device with drivers and software, user manual and warranty card)
  • MAGUS Stereo 8TH microscope head – objective part and eyepiece tubes
  • 10х/22mm eyepiece with eye relief and diopter adjustment (2 pcs.)
  • MAGUS UT2 Microscope Stand
  • MAGUS FM3 Focus Mount
  • MAGUS LED RP1 Ring Light with polarizer
  • MAGUS LED DGL2 Dual Gooseneck Light
  • MAGUS AL05 0.5х/177mm Auxiliary Lens
  • MAGUS ZFA100 C-mount Adapter
  • User manual and warranty card

Available on request:

  • 10x/22mm eyepiece with a scale
  • 15x/16mm eyepiece (2 pcs.)
  • 20x/12mm eyepiece (2 pcs.)
  • 25x/9mm eyepiece (2 pcs.)
  • 30x/8mm eyepiece (2 pcs.)
  • Auxiliary objective lens 1.5x
  • Auxiliary objective lens 2x
  • Ring light
  • Ring light with sector switching
  • HDMI digital camera
  • LCD Monitor
  • 0.5x C-mount adapter with an adjustable focus distance
  • Calibration slide

Dodatočné parametre

Kategória: Stereoskopické mikroskopy MAGUS
Záruka: 2 roky
Hmotnosť: 23.5 kg
EAN: 5905555024394
